ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity

Name: ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity
Brand: ForPro
Price: 6 USD

Quality ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity for sale

Brand Name : ForPro

Model Number : Parameter list

Certification : ISO and CE

Place of Origin : Shanghai

MOQ : 1000 pcs

Price : $6-10/pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000000 pcs

Delivery Time : 20-30 Work Days

Packaging Details : Pallet

Package : Standard Package (plastic Bag/carton Box)

Condition : 100% original

Quality guarantee : One Year

Operating temperature : Normal Temperature

Lead time : 25 Work days

Unit price : CONTACT US,Email US

Contact Now

ForPro galvanized tie rod for concrete construction with high intensity and self-cleaning

Outline

Nut is a kind of important accessories to tight formwork in pouring shear wall. Together with the Tie Rod, they act as wall tie system to fasten the formwork panels tightly during concrete pouring . They can also be used in other applications for fasten purpose.

We have casted & forged wing nut,swivel nut/combination nut,anchor nut ,waler plate with nut of different size and weight,we can also fabricate them according to your drawing or sample.

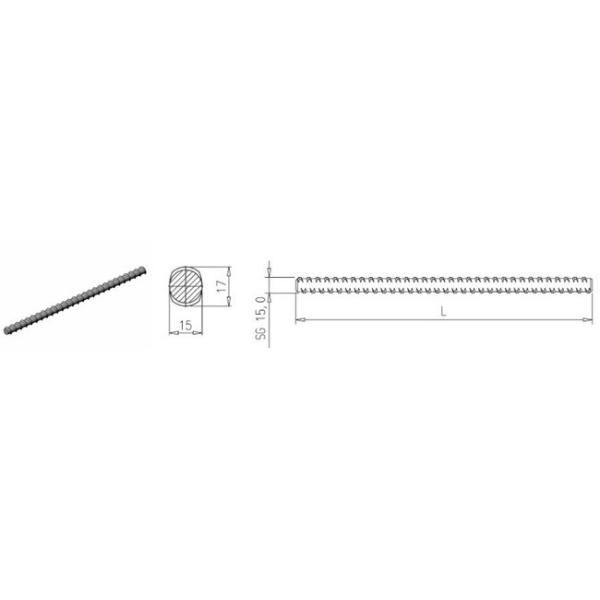

Tie rod 15.0

Permitted load:120 KN
Factor of safety :1.6:1
Permitted capacity to DIN 18216:90 KN
Breaking load:192KN
If galvanized treatment required, need to be customized.

Super plate 15.0

Galvanized
Composite type
According to DIN 18216 standards.

Wing nut 15.0 and Hexagon nut 15.0

Galvanized
Need to be used with the Anchor plate 15.0
According to DIN 18216 standards.
